Electric motors account for a large part of the electricity used. If we look at the world, electric motors account for about 65 percent of the electricity used in industry. To reduce this use of electricity, there are legal requirements regarding the efficiency of electric motors manufactured in the EU, or exported into the EU.

Three-phase, single-speed asynchronous motors are covered by the requirements today. Asynchronous motors are the most common type of motor and account for 90 percent of the electricity consumption of all electric motors in the power range 0.75 - 375 kW.

According to that standard, the energy efficiency classes have the designations IE1, IE2, IE3 and IE4, where IE4 has the highest efficiency.

ISO9001 CE certificate/New National Standard GB/T28575-2012 1 Secondary Energy Efficiency/P55:
* YE4 Super High Eficiency Secondary Energy Efficiency Motor;

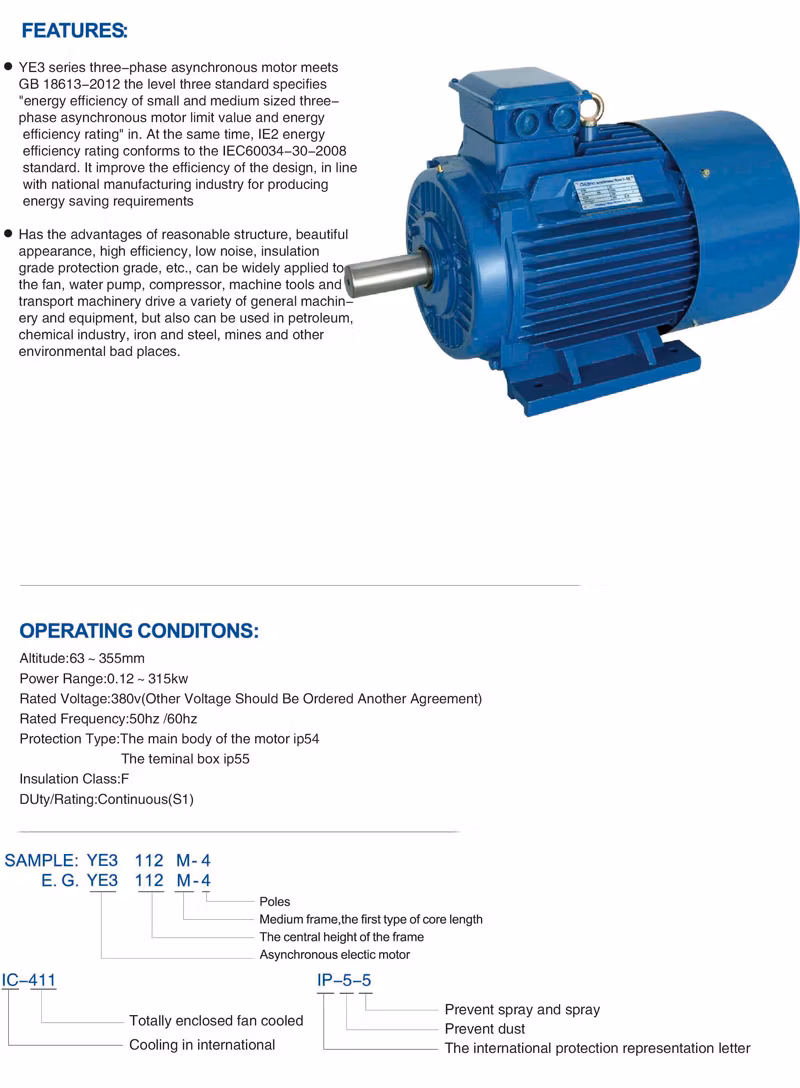

* YE3 Super High Efficiency Energy Saving Series Three -phase Asynchronous Motor;
* YE3 Super High Efficiency Energy Saving Aluminum Shell Motor;
* YVF2 Frequency conversion series three -phase asynchronous motor;
* YD2 series two-speed multi-speed three phase asynchronous motor;
* YEJ2 series electromagnetic brake three- phase asynchronous motor;
* YBX3 series flameproof three- phase asynchronous motor;
* YVFEJ2 series variable frequency brake three-phase asynchronous motor,
* YDEJ series Multi-speed electromagnetic brake three. phase asynchronous motor, oil pump motor, MS,YC,YL Y2 YE2 YE3 IE2
* special motor for stone machinery and equipment, custom-made motors with special specifications for power
requirements, and motors with different frequencies and different pressures.
* The protection grades include IP55, IP66, etc. and various special motors derived from them.

  We are specialized in all kinds of small and middle-sized electric motors.our main products include electric motors of Y series,Y2/YE2 series,YS/MS series of Three Phase Asynchronous motor;YC series,YL series,MY/ML series,JY series of Single Phase motors etc.They are widely used in machine tool, fans, pumps, compressors, packaging machinery, mining machinery, construction machinery, food machinery and other mechanical transmission device.
  We have obtained ISO90001-2008 quality certificate, CE certificate and CCC certificate.Our products are widely exported to over fifty countries and regions,such as east Europe,Southeast Asia,South America,Middle East,Africa etc.Meanwhile,we have kept well touch with many trading companies at home and abroad for cooperation relationship.
  "Reliable quality, Excellent service, Reasonable price, Timely delivery" is our company persistent pursuit.Looking forward to be your long term business partner.


Revision of the standard

A revision of the standard was decided by the Ecodesign Committee in 2019. The revision was published on October 1, 2019. The following will apply:

For electric motors

From July 1, 2021

2-, 4-, 6- and 8-pole motors from 0.75 - 1000 kW (previously up to 375kW) are included in efficiency class IE3.

Motors within the range 0.12 - 0.75 kW must meet efficiency class IE2.

The previous possibility to replace IE3 motors with an IE2 motor with frequency drive disappears.

From July 1, 2023

For 2-, 4-, 6- and 8-pole motors from 0.12 - 1000 kW, the efficiency class IE2 now also applies to Ex eb certified motors with high safety.

Single phase motors with greater power than 0.12 kW are covered by the corresponding IE2 class.

The higher efficiency class IE4 applies to 2, 4 and 6-pole motors between 75 - 200 kW.

For frequency inverters

From July 1, 2021

For use with electric motors with power from 0.12 - 1000 kW, the frequency inverter must pass efficiency class IE2 specially designed for inverters.

Current requirements according to the Directive

Since 16 June, 2011 it is prohibited to place electric motors below energy efficiency class IE2 on the market, or to put them into service in the EU.

Since January 1, 2015, electric motors within the range 7.5 - 375 kW (2-, 4-, and 6-pole) must meet the requirements for IE3, or IE2 if the latter is combined with frequency inverters for speed control. The legal requirement thus provides two options.

From January 1, 2017, the requirements were tightened so that all motors 0.75 - 375 kW (2-, 4-, and 6-pole) must meet the requirements for IE3, or IE2 if they are combined with frequency inverters.

Exemptions from the current directive

• Operation other than S1 (continuous drive) or S3 (intermittent drive) with a nominal cyclicity factor of 80 percent or lower.
• Made for assembly with frequency inverters (integral motors).
• Electric motors made for use in liquid.
• Electric motors that are fully integrated into a product (e.g. a gear, pump, fan or compressor) where the energy performance is not tested independently of the product.
• Brake motors

Electric motors intended for operation exclusively:

• At altitudes exceeding 4 000 meters above sea level.
• If ambient air temperatures exceed 60°C.
• Where maximum operating temperature exceeds 400°C.
• Where ambient air temperatures are less than -30°C for all motors, or less than 0°C for motors with water cooling.
• In explosive atmospheres (as defined in Directive 94/9 / EC 9)

The requirements do not apply to ships or other means of transport that carry goods or persons, since there must be specially designed engines for this purpose. (If the same mobile conveyor belt is used on ships as well as on land, the rules apply).

Also, the requirements do not apply to repair of motors previously placed on the market, or put into service - unless the repair is so extensive that the product will in practice be brand new.

If the motor is to be further exported for use outside Europe, the requirements do not apply.

Some other requirements apply to water-cooled motors
